Job References

  • HARBOUR CITY

Satin Nickel Plate


Share

Hardware Details

MetlamHK
MetlamHK

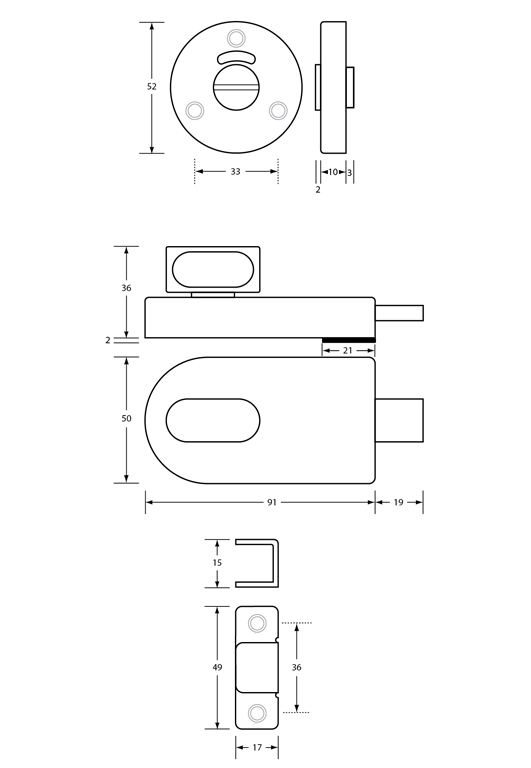

300 - Series Concealed Fix Surface Mounted Lock & Indicator Set

    Components
  • Indicator
  • Turnbolt
  • Lift Off Staple
  • Material
  • Indicator- Brass
  • Turnbolt- Diecast Zinc, Alloy ZP3
  • Lift Off Staple- Diecast Zinc, Alloy
  • ZP3 with ABS Snap On Cover
  • Finish/Specify
  • Satin Chrome (SCP) 300_LOCK_ SCP
  • Bright Chrome (BCP) 300_LOCK_BCP
  • Satin Nickel (SNP) 300_LOCK_SNP
  • Satin Pearl (SPP) 300_LOCK_SPP
  • Antimicrobial Coating (ANMB) 300_LOCK_ANMB
  • Mounting
  • Concealed Screw Fix Surface Mounted
Details

MetlamHK
MetlamHK

106C Gravity Hinge Concealed Fix

    Material
  • Diecast Zinc, Alloy ZP3 #304 Stainless Steel Shaft
  • Nylon Inserts, ABS Snap On Covers
  • Finish
  • SCP Satin Chrome Plate
  • BCP Bright Chrome Plate
  • SNP Satin Nickel Plate
  • SPP Satin Pearl Plate (Left Hand Only available)
  • ANMB Antimicrobial Coating (Left Hand Only available)
  • Specify
  • 106C_LHHO Door Assisted Left Hand Hold Open
  • 106C_LHHC Door Assisted Left Hand Hold Closed
  • 106C_RHHO Door Assisted Right Hand Hold Open
  • 106C_RHHC Door Assisted Right Hand Hold Close
  • Mounting
  • Concealed Screw Fix or Bolt Through
  • Features
  • Gravity assisted door opening/door closing with lift off capability.
  • Load Rating
  • 15Kg per hinge
  • For optimum performance - 2 hinges per door up to 30Kgs
  • For doors over 30Kg allow for 15Kg per hinge
  • Note
  • For Bolt Through use 106CFACEPLATE Concealed Fix Face Plates Gravity hinges contain no mechanical components. Functionality of these hinges can vary depending on the environment. When selecting this product, please view our Product Disclosure Statement in the Care and Maintenance Download below.
Details

MetlamHK
MetlamHK

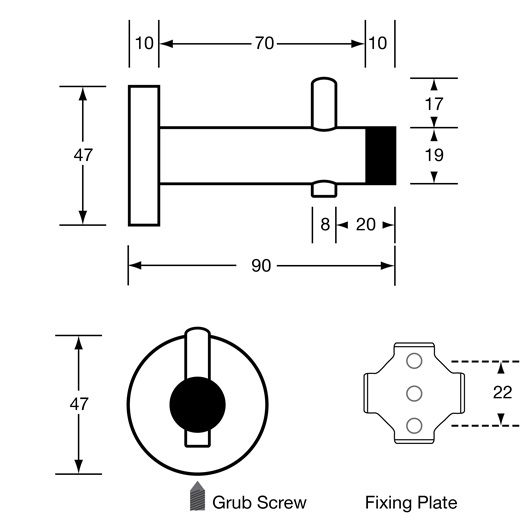

700_SS_ Coat hook - SS

    Material
  • #304 Stainless Steel Rubber Bumper
  • Finish
  • Satin Stainless Steel (SSS)
  • Mounting
  • Concealed Screw Fix via Fixing Plate Allen Key Supplied
  • Dimensions
  • 47x47x90mm
  • Note
  • * This unit is accessible compliant when installed in accordance with AS1428.1. guidelines.
Details

MetlamHK
MetlamHK

100 H Stainless Steel Pilaster Base Cover

    316 Stainless Steel
Details

Formica® Panel Materials

Material:

Formica Protec+ Silver (Ag+) antimicrobial Compact Grade laminate, 12mm thick, blackcore, decopaper on double sides in matte or naturelle finish (other finishes are available as request)


International Standard & Certifications:

Greenguard Gold Certification; Greenguard Certification; BS EN-438-2016; ISO9001; ISO14001; Carbon Reduction Label; BS476 Part 6 and 7; Antifungal ASTM G21 : 2013 test report , with 0 (None); Antibacterial JIS Z2801 : 2012 prevent growth of bacterial up to 99.9% within 24 hours.


Recommended Dimensions:

800-900mm (W) x 1500-1800mm (D) x 2100mm (H)
