Satin Matte Black Finish

Share

Hardware Details

MetlamHK
MetlamHK

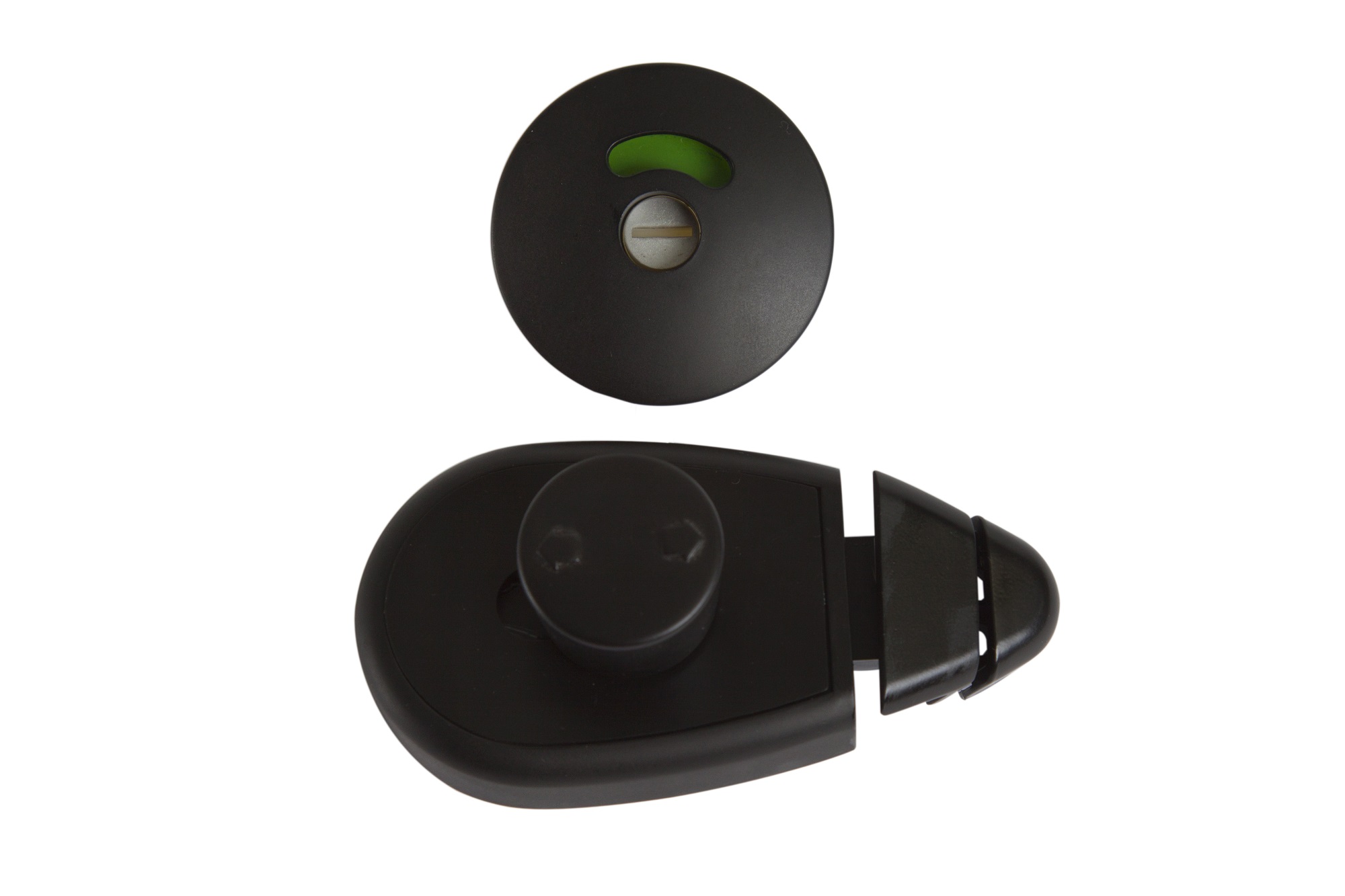

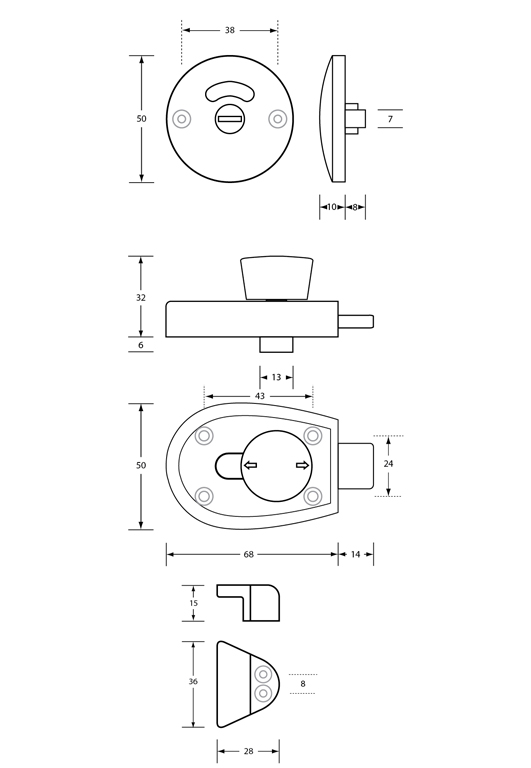

Xcel Slide Lock and Indicator Set

    Components
  • Indicator, Easy-Glide Lock, Lift Off Staple
    • Finish/ Specify
  • XCEL_SLIDELOCK_SCP: Satin Chrome
  • XCEL_SLIDELOCK_SNP: Satin Nickel - Stainless Steel Look
  • XCELSLIDELOCK_SPP: Satin Pearl
  • ANMB_XCELSLIDELOCK: Antimicrobial Coated
  • DESIGNER_XCELSLIDELOCK: Satin Matte Black
    • Indicator
  • Material : Diecast Zinc, Alloy ZP3
  • Mounting : Concealed Screw Fix Surface Mounted
  • Features : Anti pull through fixing plate
  • Material : Diecast Zinc, Alloy ZP3
  • ABS Snap On Cover Plate
    • Easy-Glide Slide Lock
  • Material : Diecast Zinc, Alloy ZP3
  • ABS Snap On Cover Plate
  • Mounting : Concealed Screw Fix Surface Mounted
  • Features : Unique Easy-Glide Slide Lock for restricted hand mobility, limb loss and hygiene protection
  • Raised directional arrows for vision impaired
  • Universal system provides design uniformity
  • Consistent installation saves time
  • Deemed to satisfy Disability Standard AS1428.1 for ambulant cubicle specification only
    • Lift Off Staple
  • Material : Diecast Zinc, Alloy ZP3
  • ABS Snap On Cover
  • Mounting : Concealed Screw Fix Surface Mounted
  • Features : Functional modern design
  • Note : Optional Bumper Available for SCP finish only
Details
MetlamHK
MetlamHK

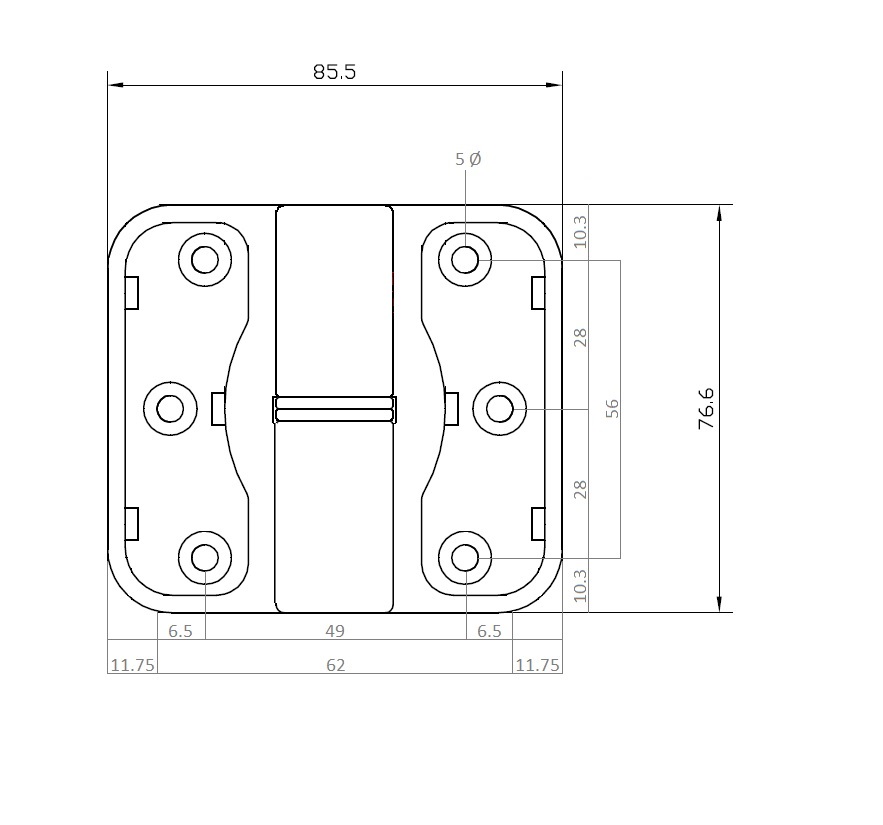

Moda Spring Hinge

    Material
  • Diecast Zinc, Alloy ZP3
  • Brass Shaft
  • Nylon Inserts, ABS Snap On Covers
    • Finish
  • DESIGNER_MODA: Satin Matte Black
    • Also
  • MODA_SCP: Satin Chrome Plate
    • Available
  • MODA_SPP: Satin Pearl Plate
  • ANMB_MODA: Antimicrobial Coating
    • Mounting/Specify
  • Concealed Screw Fix RH or LH
    • Features
  • Spring assisted door opening/door closing
  • Fully AdjustableSpring to suit door - No Tension to Full Tension Spring
  • Reversible Hold Open / Hold Closed
  • Lift off capability
    • Load Rating
  • 15Kg per hinge
  • For optimum performance - 2 hinges per door up to 30Kgs
  • For doors over 30Kg allow for 15Kg per hinge
  • Note: 3 Hinges per door is recommended to prevent door bowing
Details
MetlamHK
MetlamHK

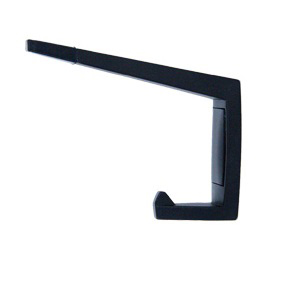

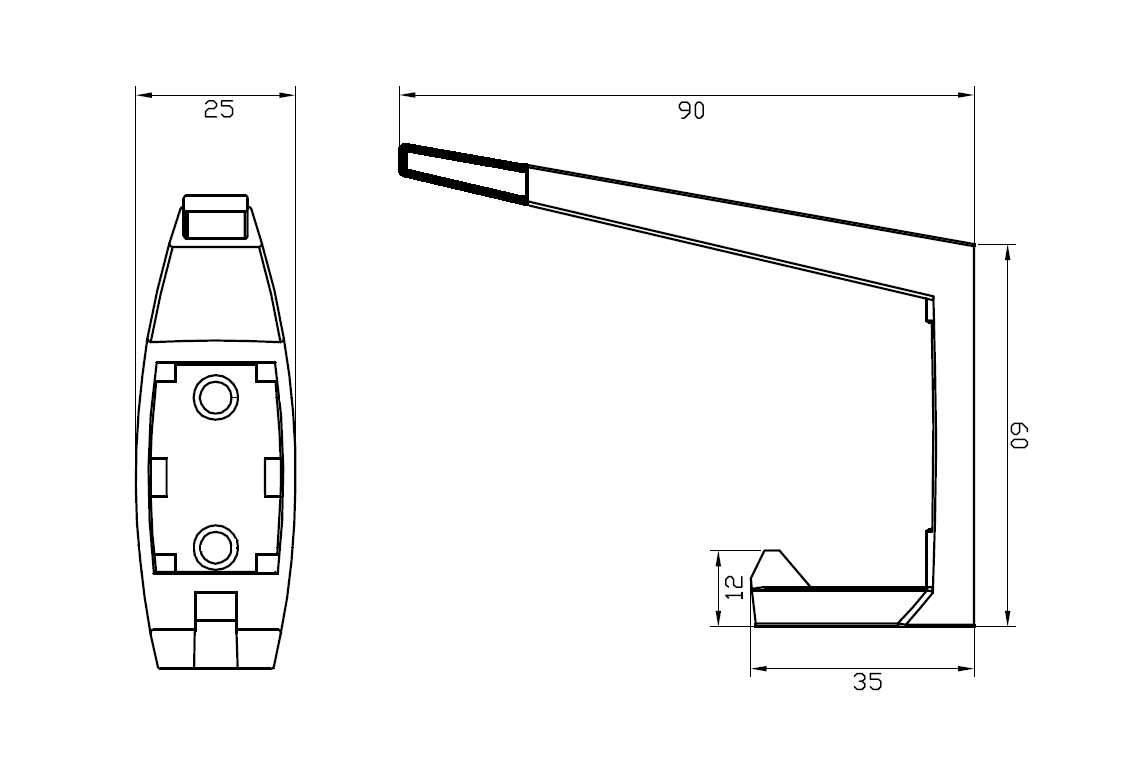

Moda Hat & Coat Hook

    Material
  • Diecast Zinc, Alloy ZP3
  • Rubber Bumper
    • Finish
  • MODA_HOOK_DESIGNER: Designer Black
    • Also
  • MODA_HOOK_SCP: Satin Chrome Plate
    • Available
  • MODA_HOOK_SPP: Satin Pearl Plate
  • MODA_HOOK_ANMB:Antimicrobial Coating
    • Mounting
  • Concealed Screw Fix
    • Dimensions
  • Height: 60mm x Width: 25mm x Projection: 90mm
    • Note
  • * This unit is accessible compliant when installed in accordance with AS1428.1. guidelines.
Details
MetlamHK
MetlamHK

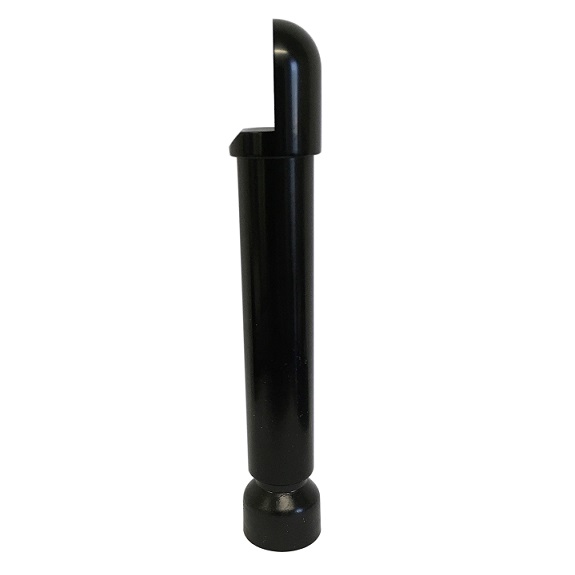

Designer_120ALUM Heavy Duty Aluminium Leg - Designer Black

    Material
  • Aluminium, Nylon Base
    • Finish
  • Anodised Designer Black
    • Features
  • Off Floor System
    • Dimensions
  • Designer_120ALUM_100: 100mm min - 110mm max height with 10mm adjustment
  • Designer_120ALUM_150: 135mm min - 165mm max height with 30mm adjustment
  • Designer_120ALUM_165: 165mm min - 200mm max height with 35mm adjustment
  • Designer_120ALUM_200: 185mm min - 225mm max height with 40mm adjustment
Details
MetlamHK
MetlamHK

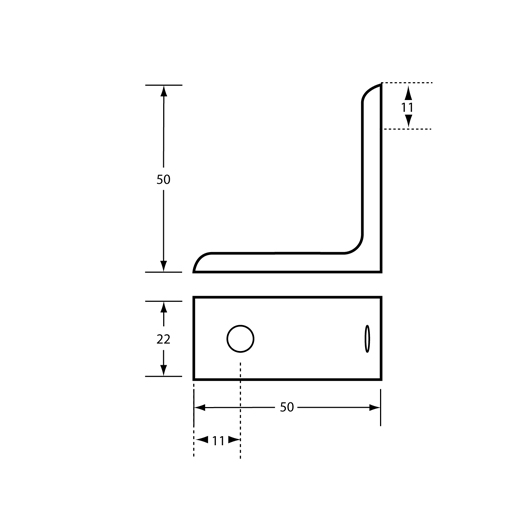

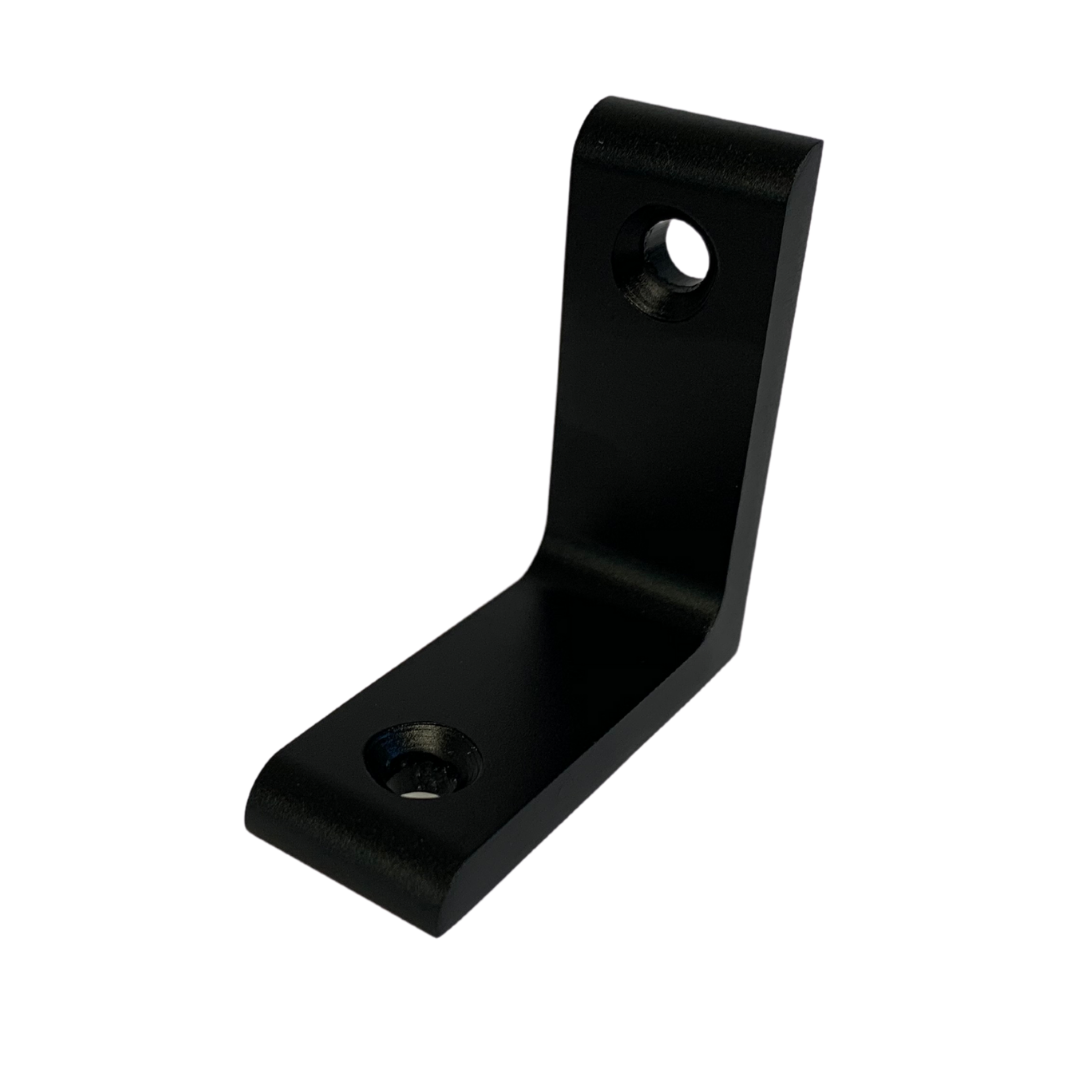

ML121-AL Angle Bracket

    Material
  • Aluminium
    • Finish
  • Designer Black
    • Screw Holes
  • Countersunk (CSK)
    • Feature
  • 6mm thick bracket with 6mmØ hole
Details

Formica® Panel Materials

Material:

Formica Protec+ Silver (Ag+) antimicrobial Compact Grade laminate, 12mm thick, blackcore, decopaper on double sides in matte or naturelle finish (other finishes are available as request)

International Standard & Certifications:

Greenguard Gold Certification; Greenguard Certification; BS EN-438-2016; ISO9001; ISO14001; Carbon Reduction Label; BS476 Part 6 and 7; Antifungal ASTM G21 : 2013 test report , with 0 (None); Antibacterial JIS Z2801 : 2012 prevent growth of bacterial up to 99.9% within 24 hours.

Recommended Dimensions:

900mm (W) x 1500-1800mm (D) x 2100mm (H)
