Silver Ag+ Cubicle System

  • Home
  • Cubicle System

Job References

  • ST. PAUL HOSPITAL
  • SAVANNAH

Antimicrobial Finish

Share

Hardware Details

MetlamHK
MetlamHK

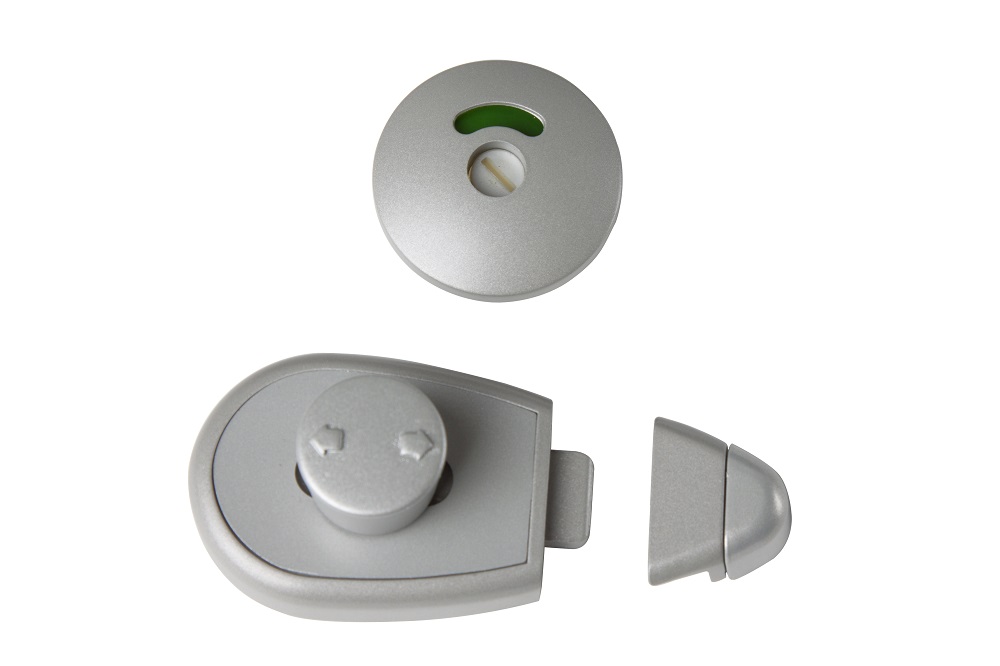

Antimicrobial Xcel Slide Lock and Indicator Set

    Indicator
  • Material : Diecast Zinc, Alloy ZP3, Antimicrobial Coated
  • Finish/Specify : ANMB_XCELSLIDELOCK
  • Mounting : Concealed Screw Fix, Surface Mounted
  • Features : Anti pull through fixing plate, Easy-Glide Slide Lock
    • Easy-Glide Slide Lock
  • Material : Diecast Zinc, Alloy ZP3, Antimicrobial Coated, ABS Snap On Cover Plate
  • Finish/Specify : ANMB_XCELSLIDELOCK
  • Mounting : Concealed Screw Fix, Surface Mounted
  • Features : Unique Easy-Glide Slide Lock for restricted hand mobility, limb loss and hygiene protection
  • Raised directional arrows for vision impaired
  • Universal system provides design uniformity
  • Consistent installation saves time
  • Deemed to satisfy Disability
  • Standard AS1428.1 for ambulant cubicle specification only
    • Lift Off Staple
  • Material : Diecast Zinc, Alloy ZP3, ABS Snap On Cover, Antimicrobial Coated
  • Finish/Specify : ANMB_XCELSLIDELOCK
  • Mounting : Concealed Screw Fix; Surface Mounted
  • Features : Functional modern design
Details
MetlamHK
MetlamHK

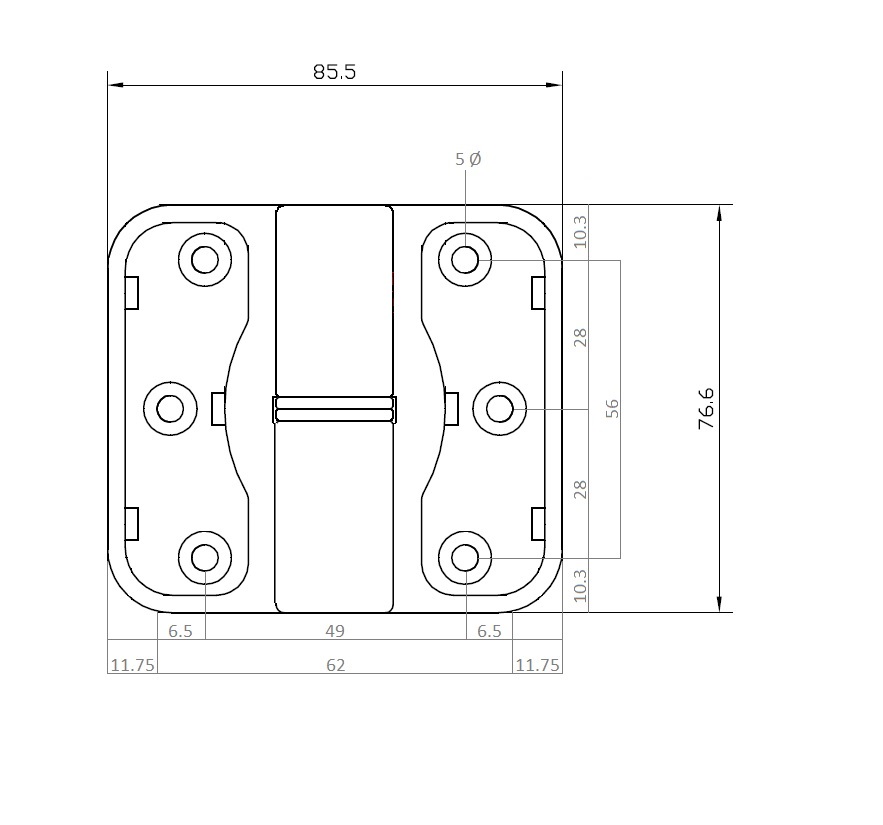

Antimicrobial Moda Spring Hinge

    Material
  • Diecast Zinc, Alloy ZP3
  • Brass Shaft
  • Nylon Inserts, ABS Snap On Covers
    • Finish
  • ANMB_MODA: Antimicrobial Coating (Shown)
  • MODA_SCP: Satin Chrome Plate
  • MODA_SPP: Satin Pearl Plate
  • DESIGNER_MODA: Satin Matte Black
    • Mounting/Specify
  • Concealed Screw Fix RH or LH
    • Features
  • Spring assisted door opening/door closing
  • Fully AdjustableSpring to suit door - No Tension to Full Tension Spring
  • Reversible Hold Open / Hold Closed
  • Lift off capability
    • Load Rating
  • 15Kg per hinge
  • For optimum performance - 2 hinges per door up to 30Kgs
  • For doors over 30Kg allow for 15Kg per hinge
Details
MetlamHK
MetlamHK

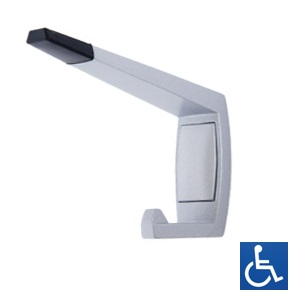

Antimicrobial Moda Hat and Coat Hook

    Material
  • Diecast Zinc, Alloy ZP3
  • Rubber Bumper
    • Finish
  • ANMB_MODAHOOK: Antimicrobial Coating (Shown)
  • MODA_HOOK_SCP: Satin Chrome Plate
  • MODA_HOOK_SPP: Satin Pearl Plate
  • DESIGNER_MODAHOOK: Satin Matte Black
    • Mounting
  • Concealed Screw Fix
    • Dimensions
  • Height: 60mm x Width: 25mm x Projection: 90mm
  • Refer to line drawings for more information.
    • Note
  • * This unit is accessible compliant when installed in accordance with AS1428.1. guidelines.
Details

Formica® Panel Materials

Material:

Formica Protec+ Silver (Ag+) antimicrobial Compact Grade laminate, 12mm thick, blackcore, decopaper on double sides in matte or naturelle finish (other finishes are available as request)

International Standard & Certifications:

Greenguard Gold Certification; Greenguard Certification; BS EN-438-2016; ISO9001; ISO14001; Carbon Reduction Label; BS476 Part 6 and 7; Antifungal ASTM G21 : 2013 test report , with 0 (None); Antibacterial JIS Z2801 : 2012 prevent growth of bacterial up to 99.9% within 24 hours.

Recommended Dimensions:

800-900mm (W) x 1500-1800mm (D) x 2100mm (H)
